The Maestro
Medical Alarm Series

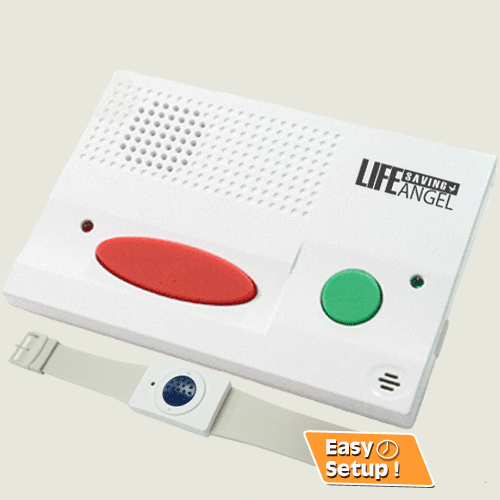

The modern design of Medical Emergency Alarm
System to be used in the homes of the old and physically handicapped. With
its big red "HELP" button and associated transmitters
including a portable emergency pendant, a single press of the button can
start an emergency signal to be sent to the Central Monitoring Station,
or and optional call to a Personal Phone Number for immediate assistance.
It features an advanced "Two
Way Voice Communication" which allows the Monitoring Station
to listen in to what is happening on the client's side or to talk to the
client through the built-in microphone & speaker. The Green
Reset Button can also be programmed to dial non-emergency calls
for 30 minutes, allowing you to enjoy a hands-free communication freedom.
Supervision is added to receive the superisory
signals from Wristband and Pendant (WTR-) to indicate their proper functioning.
Furthermore, the Maestro is specially designed with a variety of Alarm
Protocols, adding its versaitity for the most advanced monitored security
market.
Features
• Built-in
Digital & Voice Dialer
Maestro : ( click here to see publicity )
Flyer : ( click here to see our promotinal flyer )
• Central Monitoring Communication Protocols : Contact
ID' Scancom Social Alarm
Format ( SAF ), and Tunstall Telecom Format
• Up to 4 different phone numbers
can be stored in priority order with the choice of of Central
Monitoring Station reporting or Voice reporting.
• A Voice message with the capacity of 20 secs can be recorded.
• "Two Way hands-Free Voice Communication" allows
the personnel in Central Monitoring Station to talk to you , and listen-in
to what is happening on your side through the built-in microphone &
speaker.
• Hands free call answering
• Half duplex ( Push to Talk & Listen in )
& Full duplex ( Two-Way Conversation ) speech path controlled by DTMF
commands.
• Capable of Remote & Local programming using regular DTMF phone
or a programmer.
• Incorporated pre-dial alert tones followed by comfort tones, to
indicate that emergency communication is in progress.
• pre-dial "guard time" programmable from 0 seconds to
99 seconds
• Silent Emergency Calls with Half Duplex Listen in only for
victim monitoring function
• "Help arrived" confirmation feature.
• Supervision for Wrist Pendants WTRF & WTRM : Problems such
a Low Battery or Damage are detected in normal times so that rectifications
can be made, thus ensure that the Wrist Pendant is working properly when
needed.
• Mobilité Check
• Master Control over phone line
• Automatic Check-in Report
• Fault reporting : AC Power failure, Device Low Battery, and Panel
Low Battery
• A maximum of 10 devices can be added in one system including :
Waterproof Wrist Transmitter, Waterproof Emergency Pendant, passive Infrared
Detector, Fixed Panic Button, Smoke Detector, Carbon Monoxide Detector,
and Water Sensor.
• Brightly illuminated large Red Emergency button for easy access
in an emergency.
• Wall-mounting and table-top available.
• Compatible with programmer for both local & Remote Programming.
Optional Voice Prompt; playing customized voice prompts in certain events.
Power : 12V 500 ma adaptor
Back up battery: 7.2 600mAh Ni-Mh rechargeable battery x 6
Battery back up time : 18 hours minimum
Operating Range : 433 MHz: over 200 meters in open space
Operating temperature : -10 à +45 C
Humidity : up to 90% non-condensing
Dimensions : 178 X 120 X 32 mm
Best Quality, Best Protection !
Falling is a biggest threat for the elderly population. Fall may lead to declining function and poor health and it often relates to significant mordibity. How to manage the risk of falling becomes an important issue for medical care.
Fall Sensor is designed for detecting a fall, offering a comprehensive way of managing your risk of falling 24 hours a day. If a fall is detected, a call is automatically dialed to your personal contact telephone list ( family, firends,
neighbor etc... ) to open a two way communication to ensure user's problem is handed properly and timely.
click here for more technical information
If no sudden movement of tilt form horizontal to vertical within 10 seconds since a fall detection, an unconsciousness alarm will be raised, allowing the most appropriate action to be taken. Besides, you also can get help at the push of the button.
click here to see publicity
A simple fall may cause a devastating consequence. Fall Sensor can help you get immediate help without missing any important moment !
Pet Immune Passive Infra-Red Motion Detector is desgined to ensure the excellent catch performance of its original purpose in security sense and in addition, eliminate the chance of false alarms caused by your be-loved jumpy pets for a dog up to 30 kilos, ten cats, or numerous rodents.
Microprocessor Controlled with advanced Digitalized Adaptive Signal
Processor algorithm.
Surface and Corner mounting removal tamper protection
Randomized supervision signals for trouble-free system integrity checking
Powered by pre-inserted Lithium Battery for Easy Installation
Low Battery Detection
Superior white light noise rejection
Detection Range: 12 meters at 90° angle (IR-9 / IRA-9 / IR-11)
12 meters at 160° angle (IRP-15)
Superior Radio Interference rejection of up to 300/m at frequencies of
100KHz to 1GHz
Automatic Power Saving Mechanism
Insect and draft proof
LED: Fault & Test Mode Indicator.
LED also doubles as the Walk Test mode activation button
Complied with CE & UL requirements.
Temperature compensated Sensitivity Control
